• High Efficiency
• In-built wall adapter, AUC and MPS function support
Our Products
IEEE802.3bt (60W-90W)
PEB9300 series All in One NIC PoE PD system
The PEB9300BT series is a complete plug and play Power over Ethernet (PoE) board, offers a completely ready to use all in one board IEEE 802.3bt PoE solution, offering type 4, Class 8 and output power up to 90 watts in all output voltage ratings.
Features
- IEEE 802.3bt PoE PD full Network Interface Card (NIC), no external components required
- High temperature operation upto 80°C without heat sink or airflow
- Type 4, Class 8, 90 W PoE PD board
- Auto-class support for automatic power budgeting
- Highly efficient (93%) 1500 V isolated DC-DC converter
- In-built primary side auxiliary wall adapter support
- Compact Size 60 mm x 80 mm
- 20 V varient fo USB-C power delivery
- Maintain Power Signature (MPS) for low power
- Low electromagnetic interference (EMI)
- 12 V, 20 V, 24 V DC output voltage models
- RJ45 & 9 pin wafer header connector options
- Support for Phihong 12.5 K legacy signature
PEM9300 series
The PEM9300BT series is the World's smallest full power IEEE 802.3bt PoE module in its class, offering type 4, Class 8 and output power up to 85 watts power in all output voltage ratings.
Features
- Type 4, Class 8, 85 W PoE PD Module
- High temperature operation upto 80°C with airflow
- Highly efficient (93%) 1500 V isolated DC-DC converter
- Auto-class support for automatic power budgeting
- Compact Size 29 mm x 70 mm
- In-built primary side auxiliary wall adapter support
- Maintain Power Signature (MPS) for low power
- Low electromagnetic interference (EMI)
- 12 V, 20 V, and 24 V DC output voltage models
- Low output ripple and noise
- Support for Phihong 12.5 K legacy signature
PEM6300 series
The PEM6300BT series is the World's smallest full power IEEE 802.3bt PoE module in its class, offering type 3, Class 6 and output power up to 60 watts power in all output voltage ratings.
Features
- Type 3, Class 6, 60 W PoE PD Module
- High temperature operation upto 80°C with airflow
- Highly efficient (93%) 1500 V isolated DC-DC converter
- Auto-class support for automatic power budgeting
- Compact Size 60 mm x 14 mm
- In-built primary side auxiliary wall adapter support
- Maintain Power Signature (MPS) for low power
- Low electromagnetic interference (EMI)
- 12 V and 24 V DC output voltage models
- Low output ripple and noise
- Support for Phihong 12.5 K legacy signature
IEEE802.3at (30W)
PEM3200 series
The PEM3200 series is a compact size, full power IEEE 802.3at compliant Power Over Ethernet (PoE) Powered Device (PD) extraction module delivering up to 30 watts peak power in all output voltage ratings.
Features
- Low-Cost, small size IEEE 802.3at Class 4 PoE PD Module
- Dedicated pin for Auxiliary Power, Remote Shut down
- High efficiency 1500 V isolated DC-DC converter
- 12 V and 24 V DC output voltage models
- Adjustable operating frequency
- Low EMI with in-built frequency dithering
- “AT Detect” pin for layer 2 classification
IEEE802.3af (13W)
PEM1900 series
The PEM1900 series is the Miniature size SMD IEEE 802.3af compliant Power Over Ethernet (PoE)Powered Device (PD) module delivering up to 11 W of power in all output voltage ratings.
Features
- Low-Cost IEEE 802.3af PoE PD Module
- Miniature size SMD (22 mm x 14 mm)
- High-efficiency 1500V isolated DC-DC converter
- Low EMI
- 5 V, and 12 V DC output voltage models

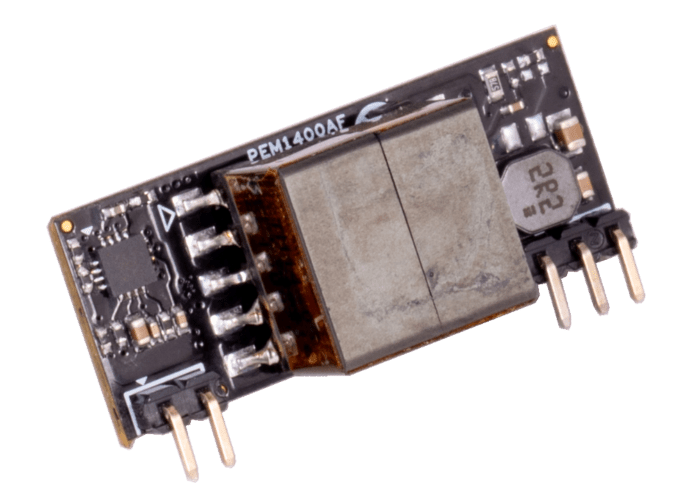

PEM1400 series
The PEM1400AF series is the world’s smallest full power IEEE 802.3af compliant Power Over Ethernet (PoE)Powered Device (PD) module delivering up to 12.95 W of power in all output voltage ratings.
Features
- Low-Cost IEEE 802.3af 12.95 W PoE PD Module
- High-efficiency 1500 V isolated DC-DC converter
- Ultra Compact Size
- Low EMI
- 3.3 V, 5 V, and 12 V DC output voltage models
PEM1300 series
The PEM1300 series is a compact size IEEE 802.3af compliant Power Over Ethernet (PoE) Powered Device (PD) extraction module delivering up to 12.95 W of power in all output voltage ratings.
Features
- Low-Cost IEEE 802.3af 12.95 W PoE PD Module
- Programmable PoE Class 0, 1, 2, 3
- Frequency Dithering (AFD model) for improved EMI
- High-efficiency 1500 V isolated DC-DC converter
- Input Polarity Protection
- 3.3 V, 5 V, 12 V and 24 V DC output voltage models
- Compact size
PEM1200 series
The PEM1200 series is a compact size IEEE 802.3af compliant Power Over Ethernet (PoE) Powered Device (PD) extraction module delivering up to 12.95 W of power in all output voltage ratings.
Features
- Low-Cost IEEE 802.3af 12.95 W PoE PD Module
- Programmable PoE Class 0, 1, 2, 3
- Frequency Dithering (AFD models) for improved EMI
- High-efficiency 1500 V isolated DC-DC converter
- 3.3 V, 5 V, 12 V, 24 V DC output voltage models
- Compact size
