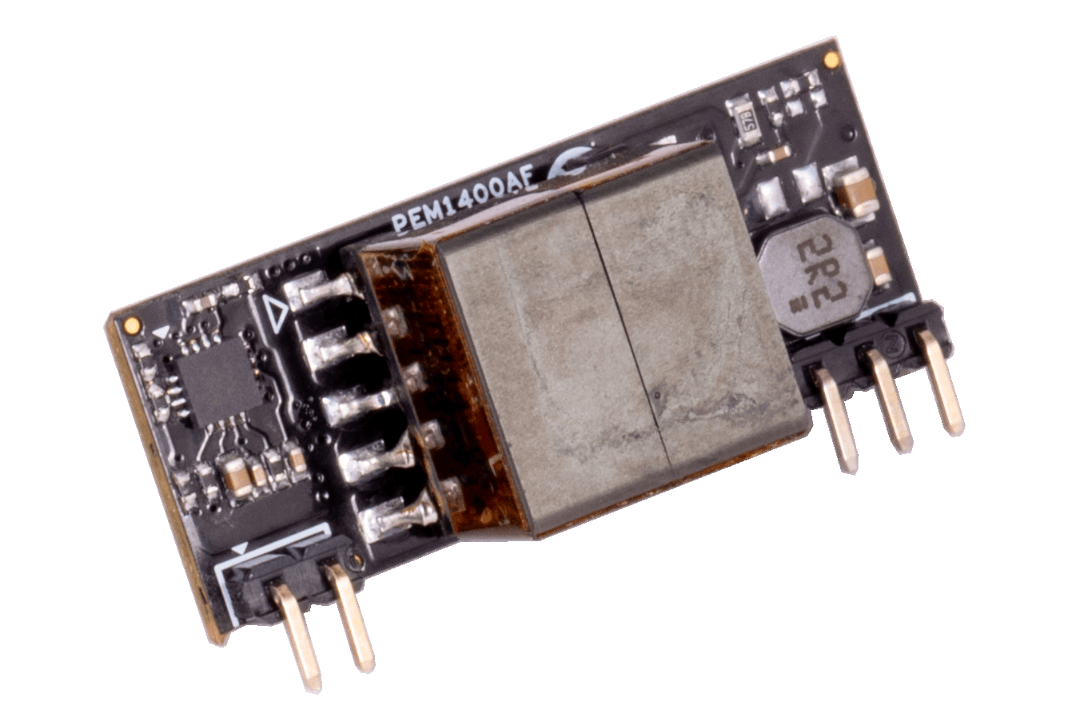

PEM1400 series

With size of 35mm x 14mm, and a footprint of 409 mm², the PEM1400 is the world’s smallest IEEE802.3af compliant Power Over Ethernet (PoE) PD extraction module

The module delivers up to 12.95 watts of power when sourced from an IEEE 802.3af compliant Power Sourcing Equipment (PSE) using CAT5 or higher Ethernet cable. The module can deliver a full load start-up at input voltages as low as 36 volts.

The ultra-low cost PEM1400 is available in 12V, 5V, and 3.3V variants. It features a high efficiency DC-DC converter, frequency dithering to reduce EMI and noise, an on-board output “pi” filter for low ripple output and in-built overload and output short-circuit protection.

The PEM1400 series provides a quick, easy, and low cost method for Ethernet equipment manufacturers to “PoE enable” their equipment.

Application Areas

• Security and alarm systems
• Voice over IP phones
• Access control systems
• IP Cameras
• Displays, Net Monitors
• Public address systems
• Wireless access points
• Environmental control
• Telemetry
• Remote environmental monitoring

Documents

PEM1400 Datasheet
